AXON EQ ADAL - Adaptive Airfield Lighting

Adaptive Airfield Lighting

Product Overview

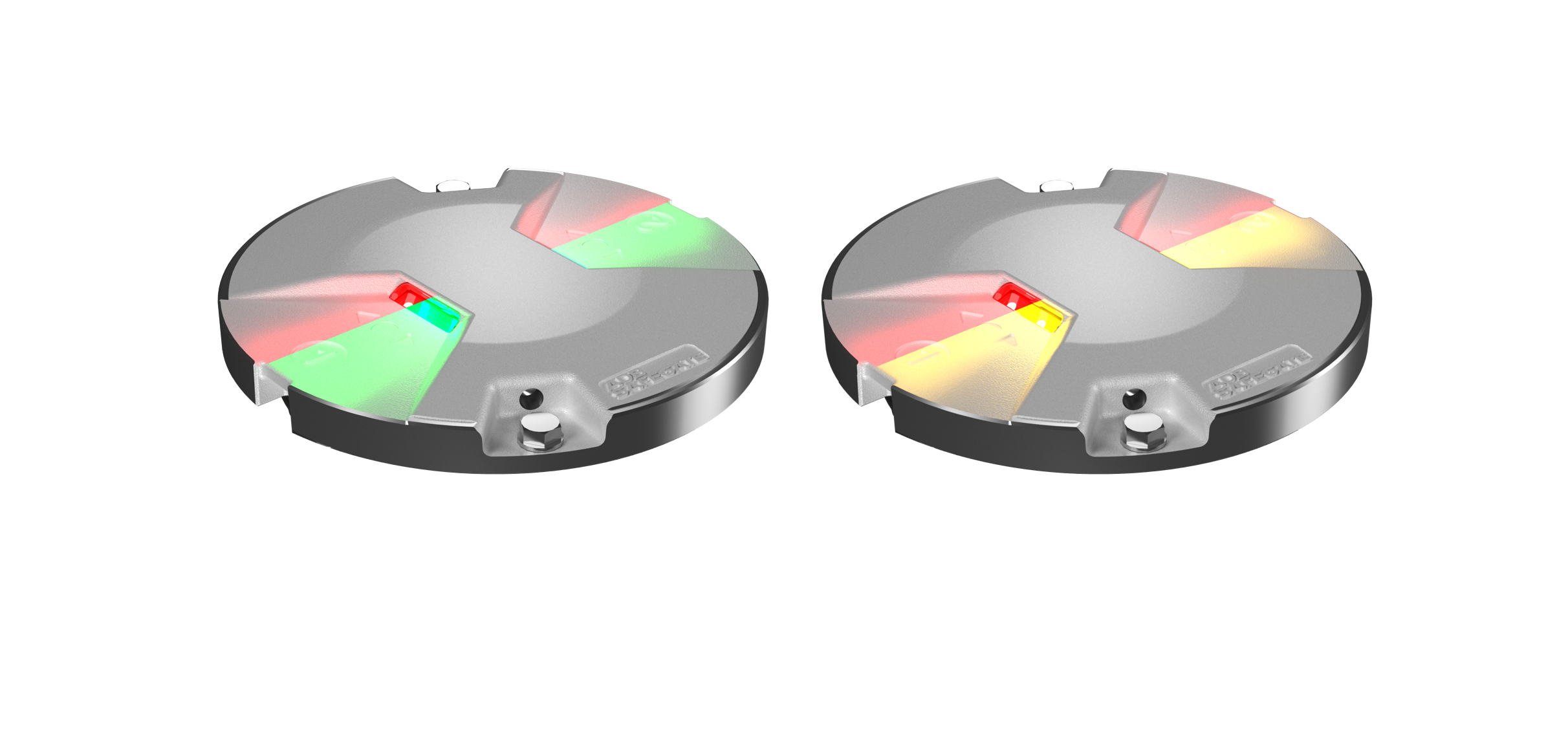

AXON EQ ADAL is an adaptive LED airfield lighting fixture designed to dynamically adjust intensity, colour, and operational logic based on real-time airport conditions.

Unlike conventional fixed-intensity taxiway lighting, AXON EQ ADAL enables scenario-based lighting behaviour integrated with Airfield Lighting Control and Monitoring Systems (ALCMS). The fixture supports dynamic holding positions, adaptive taxi routing, and contextual visual guidance during aircraft ground movement. AXON EQ ADAL is engineered for integration within modern airport lighting systems and digital airside environments.

See how ADAL adapts to a wide range of airfield scenarios, enhancing safety, efficiency, and flexibility.

Technical Details[func-read-more]

Key Capabilities

• Dynamic multi-colour LED output
• Real-time intensity control
• Scenario-based lighting logic
• Integration with ALCMS platforms
• Powerline communication compatibility
• Low power consumption LED technology
• ICAO Annex 14 and FAA compliance
• Retrofit-ready installation options

How AXON EQ ADAL Works

AXON EQ ADAL connects to centralised airfield lighting control systems through secure communication layers, including powerline communication networks.

The fixture receives operational commands from:

• Airfield Lighting Control and Monitoring Systems (ALCMS)
• Advanced Surface Movement Guidance and Control Systems (A-SMGCS)
• Airport operational databases
• Digital airside management platforms

Based on live aircraft movement, taxi routing instructions, or runway status changes, the fixture automatically adjusts light output and colour state to provide adaptive guidance.

This enables:

• Dynamic holding position modification
• Conditional stop-bar logic
• Follow-the-Green sequencing
• Apron manoeuvring support

Operational Benefits

AXON EQ ADAL enhances airport lighting system performance by:

• Improving runway incursion prevention
• Supporting low-visibility taxi operations
• Reducing ground movement conflicts
• Optimising taxiway routing clarity
• Lowering energy usage through contextual intensity control

By embedding adaptive logic at the fixture level, airports gain improved operational flexibility without replacing the entire lighting infrastructure.

Technical Specifications

• Light Source: High-efficiency LED
• Colour Options: Variable (application dependent)
• ICAO and FAA compliant stepped intensity control
• Power Supply: Series circuit compatible
• Communication: Integrated ILCMS remote for Powerline communication
• Mounting: Inset
• Dimensions: 8" or 12"
• Environmental Rating: IP68 & 69K
• Compliance: ICAO Annex 14, FAA AC 150/5345-46 applicable standards

Integration with Airport Lighting Systems

AXON EQ ADAL integrates with existing airport lighting systems and supports phased deployment strategies. The fixture operates within:

• Traditional series circuit airfield ground lighting systems
• Centralised Airfield Lighting Control and Monitoring Systems (ALCMS)
• Digital airside infrastructure environments

Airports can introduce adaptive lighting functionality while maintaining compatibility with established runway and taxiway lighting networks.

Typical Use Cases

AXON EQ ADAL is deployed in scenarios including:

• Service Road Safety Systems

• Dynamic Holding Positions

• Apron Pushback Support

• Follow-the-Green Operations

Frequently Asked Questions

What is AXON EQ ADAL?

AXON EQ ADAL is an adaptive LED airfield lighting fixture that dynamically adjusts colour and intensity based on real-time airport operational data. It integrates with ALCMS platforms to support responsive runway and taxiway lighting control.

Is AXON EQ ADAL compliant with international aviation standards?

Yes. AXON EQ ADAL is engineered to comply with ICAO Annex 14 and applicable FAA airfield lighting standards.

Can AXON EQ ADAL be installed in existing airfield lighting systems?

Yes. The fixture is compatible with existing series circuit airport lighting systems and supports phased upgrades through ALCMS integration.
