Typical installation
drawings.
Browse ADB SAFEGATE’s library of installation drawings, engineering references and construction details for airfield lighting, CCRs, guidance signs and apron systems.
Engineering documentation you can trust.
These installation drawings are developed by ADB SAFEGATE engineers and used on airport construction projects worldwide. They reflect current product specifications, regulatory requirements and best practice installation methods.
Apron

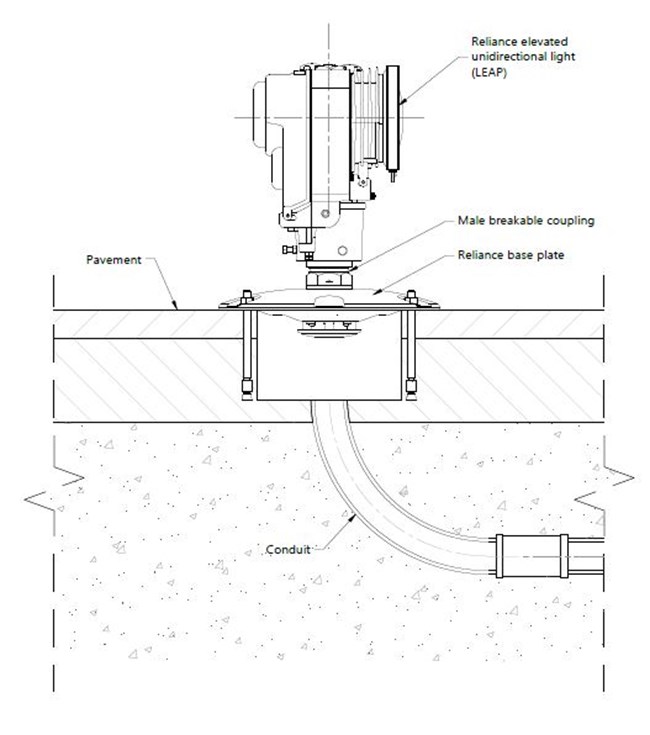

Runway and taxiway inset light installation details. Pit construction, base plate configurations and conduit arrangements.
Approach lighting
Constant Current Regulator panel layouts, series circuit connections, earthing arrangements and termination details.
Runway lighting
Elevated and surface-level airfield sign foundation details, mounting arrangements and illumination wiring.
Signs
PAPI and VASIS siting, threshold wing bar installation and approach light mounting configurations.
Runway lighting
Safedock pedestal civil works, visual docking guidance mounting and gate power supply installation details.
Installation drawings should always be used alongside applicable product manuals, project specifications and relevant regulatory requirements including:
ICAO Annex 14
Aerodrome design and operations standards for ICAO contracting states.
FAA Advisory Circulars
AC 150 series design and equipment standards for US airports.
Product manuals
Current ADB SAFEGATE product installation and maintenance documentation.
Local CAA requirements
National regulatory requirements which may supplement or modify international standards.
Project-specific drawings may differ from standard references depending on the airport design, infrastructure type and applicable regulatory jurisdiction. ADB SAFEGATE’s engineering team can advise on drawing selection and provide project-specific documentation where required.
Can’t find the drawing you need?
Our Design & Consulting team can provide project-specific installation drawings, engineering guidance and technical documentation for any ADB SAFEGATE product or system — including products no longer in current production.
Design Services
Preliminary design, IFC documentation, BIM modelling and construction support.
Design Tools
CCR calculator, photometric tools, BIM objects and specifications.
Consulting Services
Regulatory compliance reviews, feasibility studies and value engineering.
Reference Projects
Airport design and consulting projects across 175 countries.
Installation drawings are engineering reference documents that show how a product or system should be physically installed. ADB SAFEGATE installation drawings cover civil works, mechanical fixings, electrical connections, earthing arrangements and dimensional requirements for all major airfield product categories.
Select a drawing category from the library above and choose the specific drawing from the dropdown. The drawing will open directly in your browser or download automatically depending on your browser settings.
ADB SAFEGATE installation drawings are construction-reference documents intended for use alongside project-specific engineering documentation. They should be reviewed by a qualified engineer and supplemented by project-specific drawings prepared for the actual site conditions and regulatory requirements.
ADB SAFEGATE installation drawings are developed in accordance with ICAO Annex 14 requirements and product installation standards. All dimensions, clearances and installation methods reflect current ICAO guidance.
Yes. ADB SAFEGATE installation drawings are referenced to both ICAO and FAA standards where applicable. The CCR and inset light drawings include references to relevant FAA Advisory Circular requirements.
Yes. If standard drawings do not address your specific project requirements, ADB SAFEGATE’s Design & Consulting team can prepare project-specific installation drawings tailored to your site and regulatory environment.
Standard installation drawings are 2D reference documents. BIM objects incorporating 3D geometry and intelligent engineering data are available separately through the BIM Object Library. Contact the design team to request BIM objects for specific products.
Drawings are updated when products are redesigned, when regulatory standards change or when project experience identifies improvement opportunities. The library reflects the current product range and applicable standards.
Yes. Installation drawings are freely available to contractors, subcontractors and installers. They should be used alongside product-specific installation instructions and any project-specific documentation.
ADB SAFEGATE maintains historical installation documentation. Contact the Design & Consulting team with details of the product and installation type and we will locate the relevant documentation.
