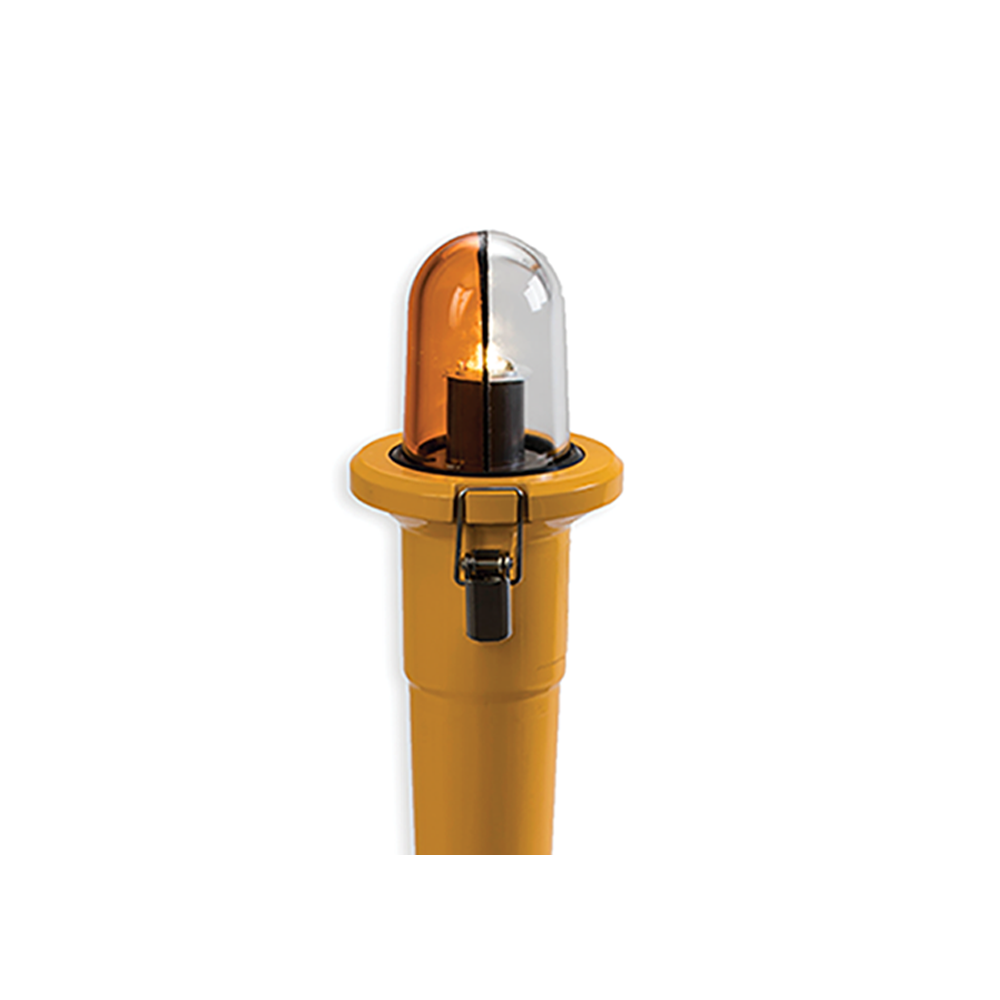

RELIANCE - Runway Edge, Elevated, L-861(L)
A medium-intensity omnidirectional elevated LED light fixtures are used to delineate the edges of airport runways (white, yellow, red, green).
- Spare parts
- Data Sheet
- Manual
- Spec

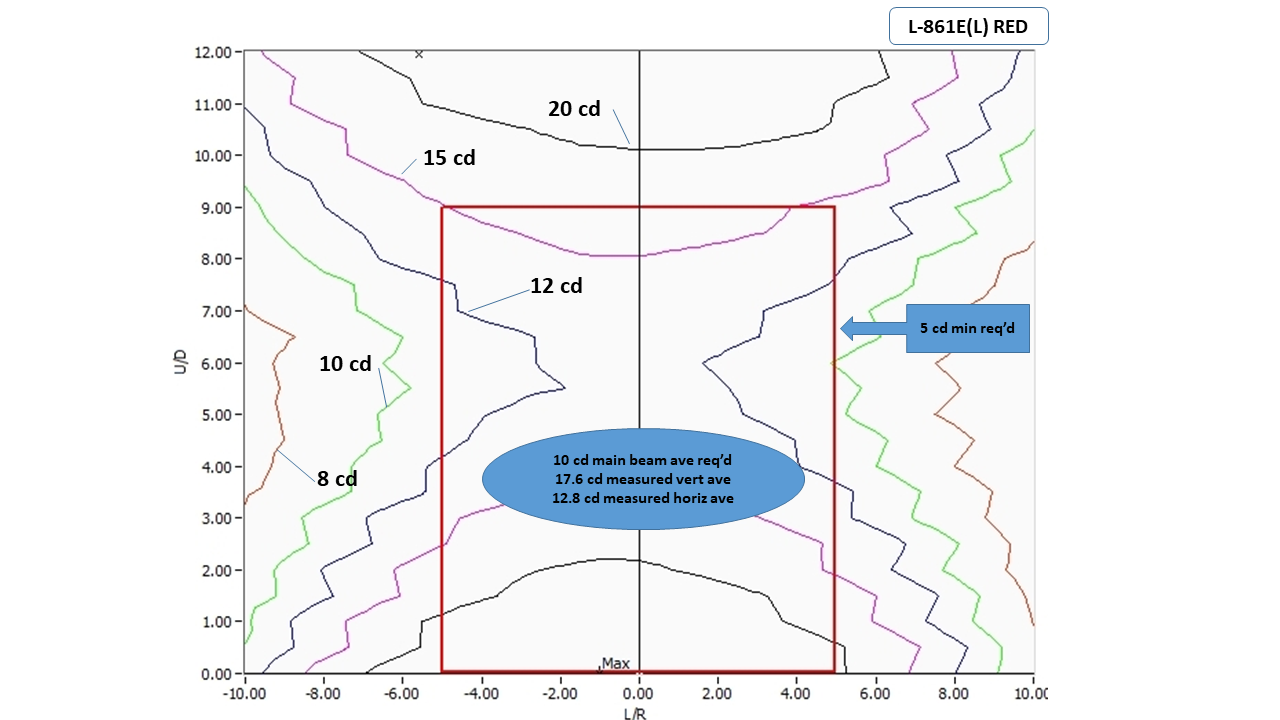

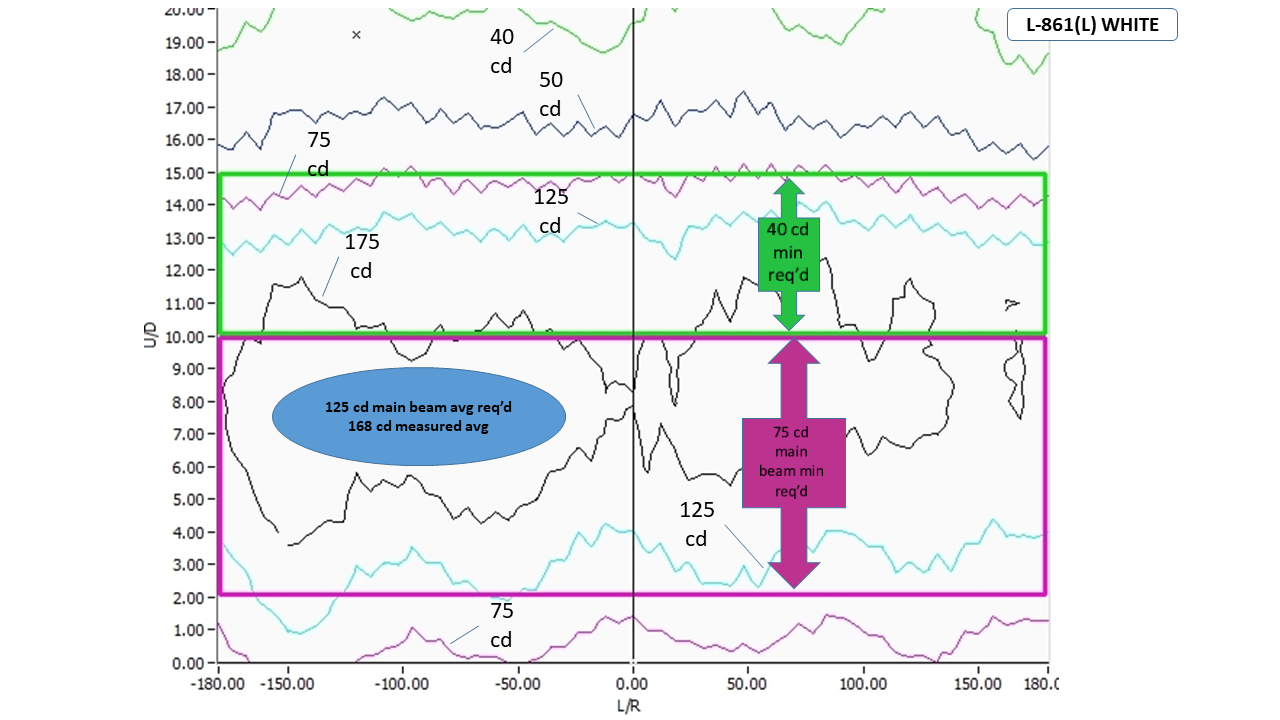

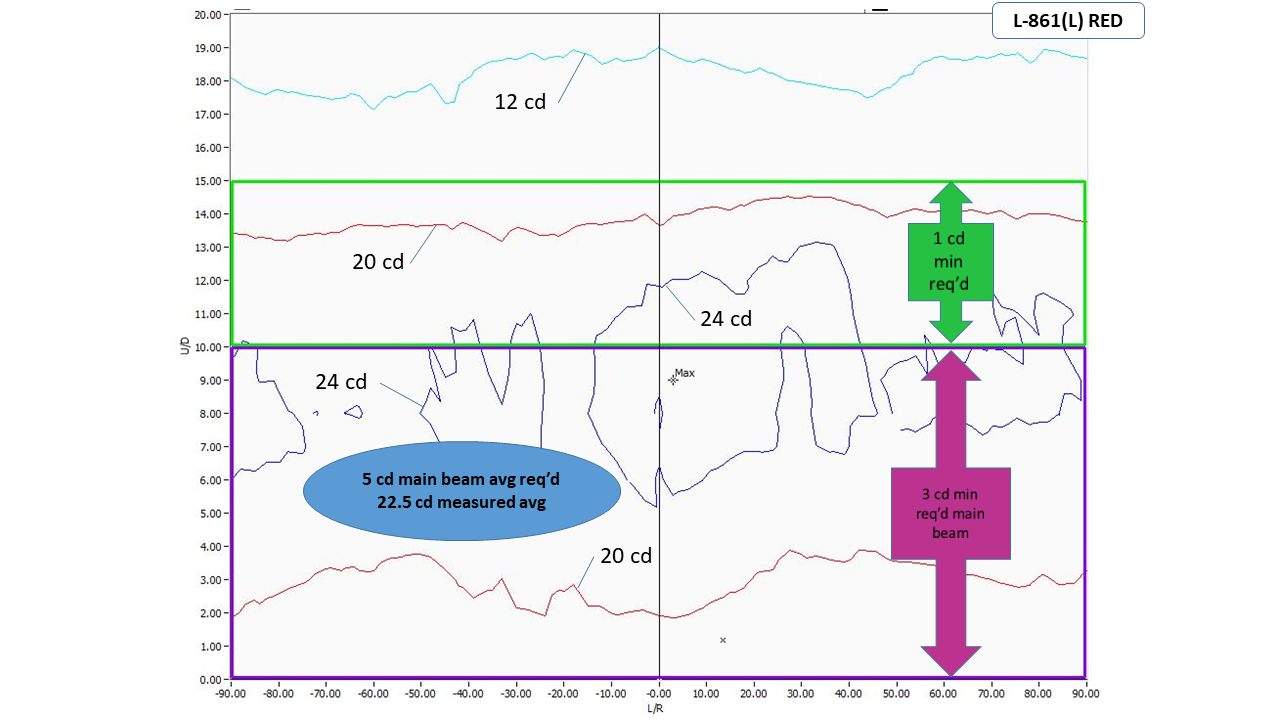

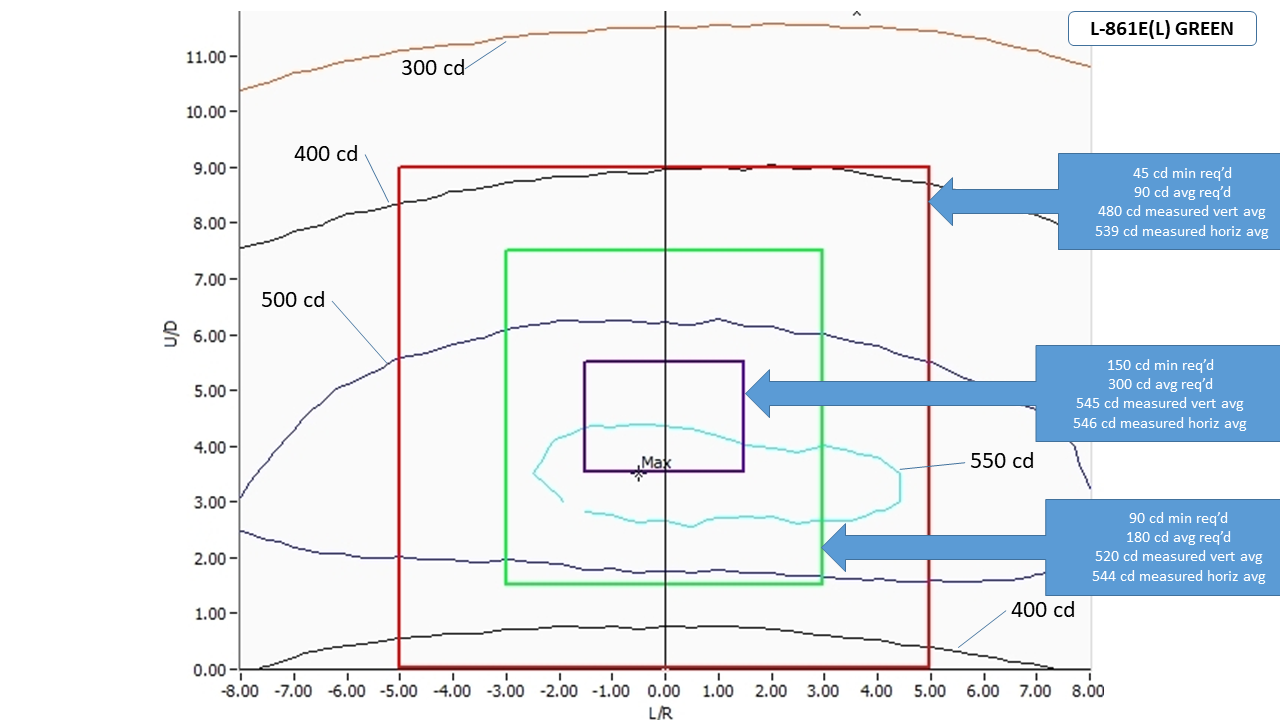

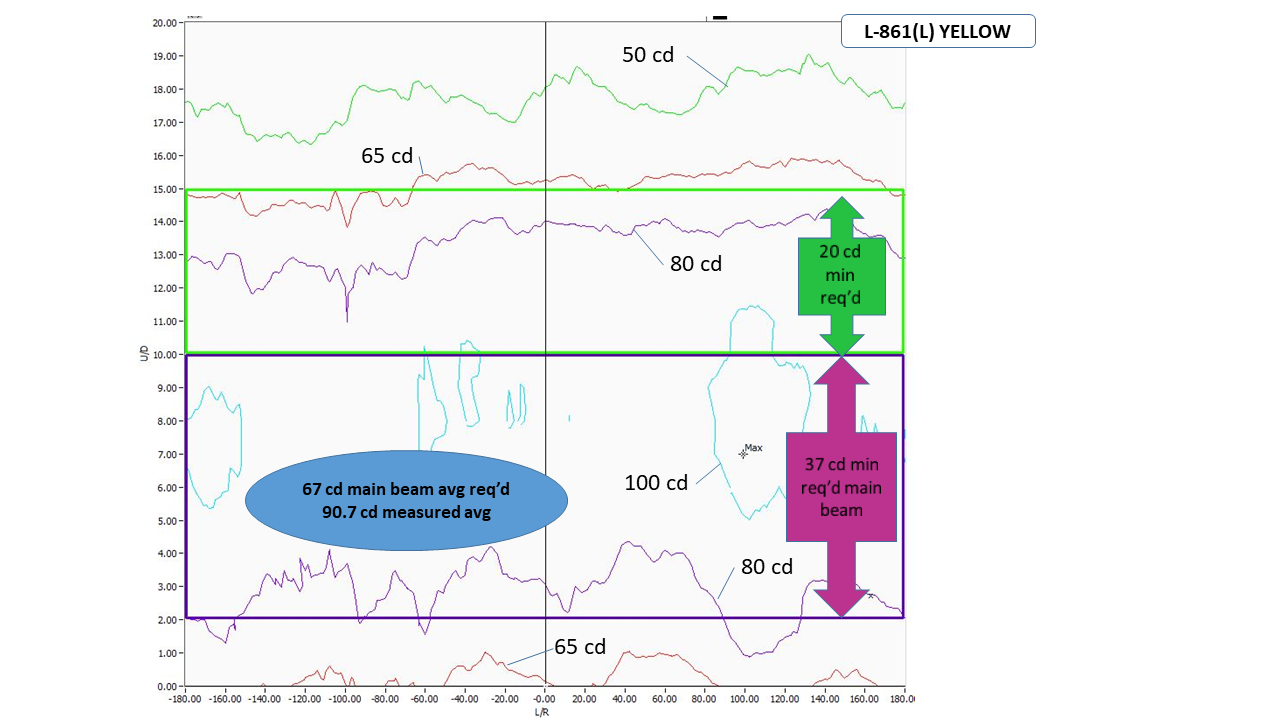

- Photometric Data
- Certification
- Drawing
Spare parts for RELIANCE - Runway Edge, Elevated, L-861(L)
-
1
Optical Component Assembly - Complete
DescriptionArticle codeQtyDescription:EMIX-OPTIC ASSEMBLY L-861SE O/G W AKArticle code:44A7654/SOG10Qty:Description:EMIX-OPTIC ASSEMBLY TP312 G/O W AKArticle code:44A7654/CGO10Qty:Description:EMIX-OPTIC ASSEMBLY L-861E R/R NO AKArticle code:44A7654/ERR00Qty:Description:EMIX-OPTIC ASSEMBLY L-861 W/G NO AKArticle code:44A7654/1WG00Qty:Description:EMIX OPT ASSY - MOS139 R/W NOARC LO INTArticle code:44A7654/LRW00Qty:Description:EMIX-OPTIC ASSEMBLY TP312 R/O NO AKArticle code:44A7654/CRO00Qty:Description:EMIX-OPTIC ASSEMBLY L-861 Y/G NO AKArticle code:44A7654/1YG00Qty:Description:EMIX-OPTIC ASSEMBLY L-861E O/G W/ AKArticle code:44A7654/EOG10Qty:Description:EMIX-OPTIC ASSEMBLY TP312 R/O W AKArticle code:44A7654/CRO10Qty:Description:EMIX-OPTIC ASSEMBLY L-861 Y/G W/ AKArticle code:44A7654/1YG10Qty:Description:EMIX-OPTIC ASSEMBLY L-861 W/Y W/ AKArticle code:44A7654/1WY10Qty:Description:EMIX-OPTIC ASSEMBLY L-861 Y/R W/ AKArticle code:44A7654/1YR10Qty:Description:EMIX-OPTIC ASSEMBLY L-861E O/G NO AKArticle code:44A7654/EOG00Qty:Description:EMIX OPT ASSY - MOS139 W/W NOARCArticle code:44A7654/MWW00Qty:Description:EMIX-OPTIC ASSEMBLY L-861 W/W NO AKArticle code:44A7654/1WW00Qty:Description:EMIX-OPTIC ASSEMBLY L-861 Y/Y NO AKArticle code:44A7654/1YY00Qty:Description:EMIX-OPTIC ASSEMBLY L-861 Y/O NO AKArticle code:44A7654/1YO00Qty:Description:EMIX-OPTIC ASSEMBLY L-861E R/O NO AKArticle code:44A7654/ERO00Qty:Description:EMIX-OPTIC ASSEMBLY L-861 Y/Y W/ AKArticle code:44A7654/1YY10Qty:Description:EMIX OPT ASSY - MOS139 R/G NOARCArticle code:44A7654/MRG00Qty:Description:EMIX-OPTIC ASSEMBLY L-861E R/R W/ AKArticle code:44A7654/ERR10Qty:Description:EMIX-OPTIC ASSEMBLY L-861E O/R NO AKArticle code:44A7654/EOR00Qty:Description:EMIX-OPTIC ASSEMBLY L-861E O/R W/ AKArticle code:44A7654/EOR10Qty:Description:EMIX-OPTIC ASSEMBLY L-861 W/G W/ AKArticle code:44A7654/1WG10Qty:Description:EMIX-OPTIC ASSEMBLY L-861 W/Y NO AKArticle code:44A7654/1WY00Qty:Description:EMIX-OPTIC ASSEMBLY L-861 Y/R NO AKArticle code:44A7654/1YR00Qty:Description:EMIX-OPTIC ASSEMBLY TP312 R/R NO AKArticle code:44A7654/CRR00Qty:Description:EMIX-OPTIC ASSEMBLY L-861 W/O NO AKArticle code:44A7654/1WO00Qty:Description:EMIX-OPTIC ASSEMBLY L-861SE R/G NO AKArticle code:44A7654/SRG00Qty:Description:EMIX-OPTIC ASSEMBLY L-861E R/G W/ AKArticle code:44A7654/ERG10Qty:Description:EMIX OPT ASSY - MOS139 W/W NOARC LO INTArticle code:44A7654/LWW00Qty:Description:EMIX-OPTIC ASSEMBLY L-861 Y/O W/ AKArticle code:44A7654/1YO10Qty:Description:EMIX-OPTIC ASSEMBLY TP312 G/O NO AKArticle code:44A7654/CGO00Qty:Description:ETP OPTIC ASSEMBLY ICAO TPL B/B NO AKArticle code:44A7654/TBB00Qty:Description:EMIX OPT ASSY - MOS139 G/O NOARC LO INTArticle code:44A7654/LOG00Qty:Description:EMIX-OPTIC ASSEMBLY L-861SE R/G W/ AKArticle code:44A7654/SRG10Qty:Description:EMIX-OPTIC ASSEMBLY L-861E G/OW/ AKArticle code:44A7654/EGO10Qty:Description:EMIX-OPTIC ASSEMBLY L-861E R/O W/ AKArticle code:44A7654/ERO10Qty:Description:EMIX-OPTIC ASSEMBLY TP312 R/G W AKArticle code:44A7654/CRG10Qty:Description:EMIX-OPTIC ASSEMBLY L-861 W/W W/ AKArticle code:44A7654/1WW10Qty:Description:EMIX-OPTIC ASSEMBLY TP312 R/G NO AKArticle code:44A7654/CRG00Qty:Description:EMIX-OPTIC ASSEMBLY L-861E R/G NO AKArticle code:44A7654/ERG00Qty:Description:EMIX OPT ASSY - MOS139 G/O NOARCArticle code:44A7654/MOG00Qty:Description:EMIX OPT ASSY - MOS139 R/O NOARCArticle code:44A7654/MRO00Qty:Description:EMIX-OPTIC ASSEMBLY L-861SE O/G NO AKArticle code:44A7654/SOG00Qty:Description:EMIX-OPTIC ASSEMBLY L-861 W/R W/ AKArticle code:44A7654/1WR10Qty:Description:ETP OPTIC ASSEMBLY ICAO TPL B/B W/AKArticle code:44A7654/TBB10Qty:Description:EMIX-OPTIC ASSEMBLY TP312 R/R W AKArticle code:44A7654/CRR10Qty:Description:EMIX OPT ASSY - MOS139 R/W NOARCArticle code:44A7654/MRW00Qty:Description:EMIX OPT ASSY - MOS139 R/G NOARC LO INTArticle code:44A7654/LRG00Qty:Description:EMIX-OPTIC ASSEMBLY L-861E G/O NO AKArticle code:44A7654/EGO00Qty:Description:EMIX OPT ASSY - MOS139 R/O NOARC LO INTArticle code:44A7654/LRO00Qty:Description:EMIX-OPTIC ASSEMBLY L-861 W/O W/ AKArticle code:44A7654/1WO10Qty:Description:EMIX-OPTIC ASSEMBLY L-861 W/R NO AKArticle code:44A7654/1WR00Qty:
-
2
Lens Door
-
3
Medium Intensity Glass Dome
DescriptionArticle codeQtyDescription:EXT HEIGHT GLASS DOME - YLW/OBSArticle code:63A1264/YOQty:Description:EXT HEIGHT GLASS DOME - CLR/OBSArticle code:63A1264/COQty:Description:EXT HEIGHT GLASS DOME - YLW/GRNArticle code:63A1264/YGQty:Description:EXT HEIGHT GLASS DOME - YLW/RED L-861Article code:63A1264/YDQty:Description:EXT HEIGHT GLASS DOME - GRN/GRNArticle code:63A1264/GGQty:Description:EXT HEIGHT GLASS DOME - CLR/YLWArticle code:63A1264/CYQty:Description:EXT HEIGHT GLASS DOME - GRN/OBSArticle code:63A1264/GOQty:Description:EXT HEIGHT GLASS DOME - RED/GRN L-861EArticle code:63A1264/RGQty:Description:EXT HEIGHT GLASS DOME - CLRN/GRNArticle code:63A1264/CGQty:Description:EXT HEIGHT GLASS DOME - RED/OBS L-861EArticle code:63A1264/ROQty:Description:EXT HEIGHT GLASS DOME - RED/RED L-861EArticle code:63A1264/RRQty:Description:EXT HEIGHT GLASS DOME - BLU/BLUArticle code:63A1264/BBQty:Description:EXT HEIGHT GLASS DOME - CLR/RED L-861Article code:63A1264/CDQty:Description:EXT HEIGHT GLASS DOME - YLW/YLWArticle code:63A1264/YYQty:Description:EXT HEIGHT GLASS DOME - CLR/CLRArticle code:63A1264/CCQty:
-
4
Seal: Side Emitting LED Lens
-
5
Light Engine
DescriptionArticle codeQtyDescription:EMIS LIGHT ENGINE - TP312 RED-OBS NO ARCArticle code:44A7606/C300Qty:Description:EMIX LIGHT ENGINE BI-DIR R/R NO AKArticle code:44A7606/E200Qty:Description:EMIX LIGHT ENGINE BI-DIR SE R/G W/ AKArticle code:44A7606/S210Qty:Description:EMIX LIGHT ENGINE OMNI W/G OR Y/G W/ AKArticle code:44A7606/1210Qty:Description:EMIX LIGHT ENG - MOS139 R/G NOARC LO INTArticle code:44A7606/L400Qty:Description:EMIX LIGHT ENGINE BI-DIR R/R W/ AKArticle code:44A7606/E210Qty:Description:EMIX LIGHT ENGINE UNI-DIR RED NO AKArticle code:44A7606/E400Qty:Description:EMIS LIGHT ENGINE - 861SE OBS-GRN W ARCArticle code:44A7606/S110Qty:Description:EMIS LIGHT ENGINE - TP312 RED-GRN W ARCArticle code:44A7606/C210Qty:Description:ETP LIGHT ENGINE OMNI-DIR NO AKArticle code:44A7606/T100Qty:Description:EMIX LIGHT ENG - MOS139 W/W NOARC LO INTArticle code:44A7606/L100Qty:Description:EMIS LIGHT ENGINE - 861SE OBS-GRN NO ARCArticle code:44A7606/S100Qty:Description:EMIS LIGHT ENGINE - TP312 RED-RED W ARCArticle code:44A7606/C110Qty:Description:EMIX LIGHT ENGINE UNI-DIR GRN NO AKArticle code:44A7606/E300Qty:Description:EMIX LIGHT ENGINE UNI-DIR RED W/ AKArticle code:44A7606/E410Qty:Description:EMIX LIGHT ENGINE UNI-DIR GRN W/ AKArticle code:44A7606/E310Qty:Description:EMIX LIGHT ENG - MOS139 R/W NOARC LO INTArticle code:44A7606/L200Qty:Description:EMIX LIGHT ENG - MOS139 G/O NOARC LO INTArticle code:44A7606/L500Qty:Description:ETP LIGHT ENGINE OMNI-DIR W/AKArticle code:44A7606/T110Qty:Description:EMIX LIGHT ENGINE BI-DIR R/G NO AKArticle code:44A7606/E100Qty:Description:EMIS LIGHT ENGINE - TP312 GRN-OBS W ARCArticle code:44A7606/C410Qty:Description:EMIX LIGHT ENGINE OMNI-DIR NO AKArticle code:44A7606/1100Qty:Description:EMIX LIGHT ENGINE OMNI W/G OR Y/G NO AKArticle code:44A7606/1200Qty:Description:EMIX LIGHT ENGINE BI-DIR SE R/G W/O AKArticle code:44A7606/S200Qty:Description:EMIX LIGHT ENG - MOS139 R/O NOARC LO INTArticle code:44A7606/L300Qty:Description:EMIX LIGHT ENGINE BI-DIR R/G W/ AKArticle code:44A7606/E110Qty:Description:EMIS LIGHT ENGINE - TP312 RED-GRN NO ARCArticle code:44A7606/C200Qty:Description:EMIX LIGHT ENGINE OMNI-DIR W/ AKArticle code:44A7606/1110Qty:Description:EMIS LIGHT ENGINE - TP312 RED-RED NO ARCArticle code:44A7606/C100Qty:Description:EMIS LIGHT ENGINE - TP312 RED-OBS W ARCArticle code:44A7606/C310Qty:Description:EMIX LIGHT ENG - MOS139 G/O NOARC LO INTArticle code:44A7606/M000Qty:Description:EMIS LIGHT ENGINE - MOS139 RED NOARCArticle code:44A7606/M300Qty:Description:EMIS LIGHT ENGINE - MOS139 RED/GRN NOARCArticle code:44A7606/M400Qty:Description:EMIS LIGHT ENGINE - MOS139 GREEN NOARCArticle code:44A7606/M500Qty:Description:EMIX LIGHT ENG - MOS139 W/W NOARC LO INTArticle code:44A7606/M600Qty:Description:EMIX LIGHT ENG - MOS139 R/W NOARC LO INTArticle code:44A7606/M700Qty:Description:EMIX LIGHT ENG - MOS139 R/O NOARC LO INTArticle code:44A7606/M800Qty:Description:EMIX LIGHT ENG - MOS139 R/G NOARC LO INTArticle code:44A7606/M900Qty:Description:EMIS LIGHT ENGINE - MOS139 WHT/WHT NOARCArticle code:44A7606/M100Qty:Description:EMIS LIGHT ENGINE - TP312 GRN-OBS NO ARCArticle code:44A7606/C400Qty:Description:EMIS LIGHT ENGINE - MOS139 RED/WHT NOARCArticle code:44A7606/M200Qty:
-
6
M3 x 6 Flat Head PHIL SS
DescriptionArticle codeQty
-
7
Power Supply to LED Driver
DescriptionArticle codeQtyDescription:HARNESS ASSY EMIX PWR SUPPLY TO LEDArticle code:44A7581Qty:
-
8
O-Ring Seal
-
9
Light Housing
-
10
Latch
DescriptionArticle codeQtyDescription:DRAW LATCH, COMPACT SSArticle code:61A0466Qty:Description:EMIS LATCH BRACKETArticle code:61A0552Qty:Description:Stainless Steel Cotter PinArticle code:61A0553Qty:
-
11
Column Elevated Light
DescriptionArticle codeQty
-
12
1/4-20 x 1/2 HX HD
DescriptionArticle codeQtyDescription:1/4-20 x 1/2 HEX HD SS18-8 -THREAD ARMORArticle code:64A0173/8Qty:
-
13
Frangible Coupling
DescriptionArticle codeQtyDescription:Frangible coupling, 1.5 inch, 12 TPIArticle code:62B0073Qty:Description:Frangible reducer coupling, 2-1 inch, 11 TPI2Article code:61A0350Qty:Description:Frangible reducer coupling, 2-1 inch, 11.5 TPIArticle code:61A0281Qty:
-
14
Power Supply Assembly
-
15
Cordset Assembly
DescriptionArticle codeQtyDescription:L-823 C.SET FAA CLASS A TY II ST1, 37"LArticle code:73A0107/37Qty:Description:Spare EMIS Cordset Assembly 24"Article code:44A7663-24Qty:Description:Spare EMIS Cordset Assembly 20"Article code:44A7663-20Qty:Description:Spare EMIS Cordset Assembly 30"Article code:44A7663-30Qty:Description:CORDSET 31" 16AWG L823 NO TERM Sty 1Article code:73A0163/31Qty:Description:FLAT WASHER SS 1.088 OD X .306 ID X .038Article code:66A0340Qty:Description:Spare EMIS Cordset Assembly 18"Article code:44A7663-18Qty:Description:Spare EMIS Cordset Assembly 14"Article code:44A7663-14Qty:
-
16
Earthing Assembly
DescriptionArticle codeQtyDescription:EMIS WIRE LEAD ASSY, EARTHINGArticle code:44A7644/2Qty:
