SWCS - Solar Wind Cones, LED

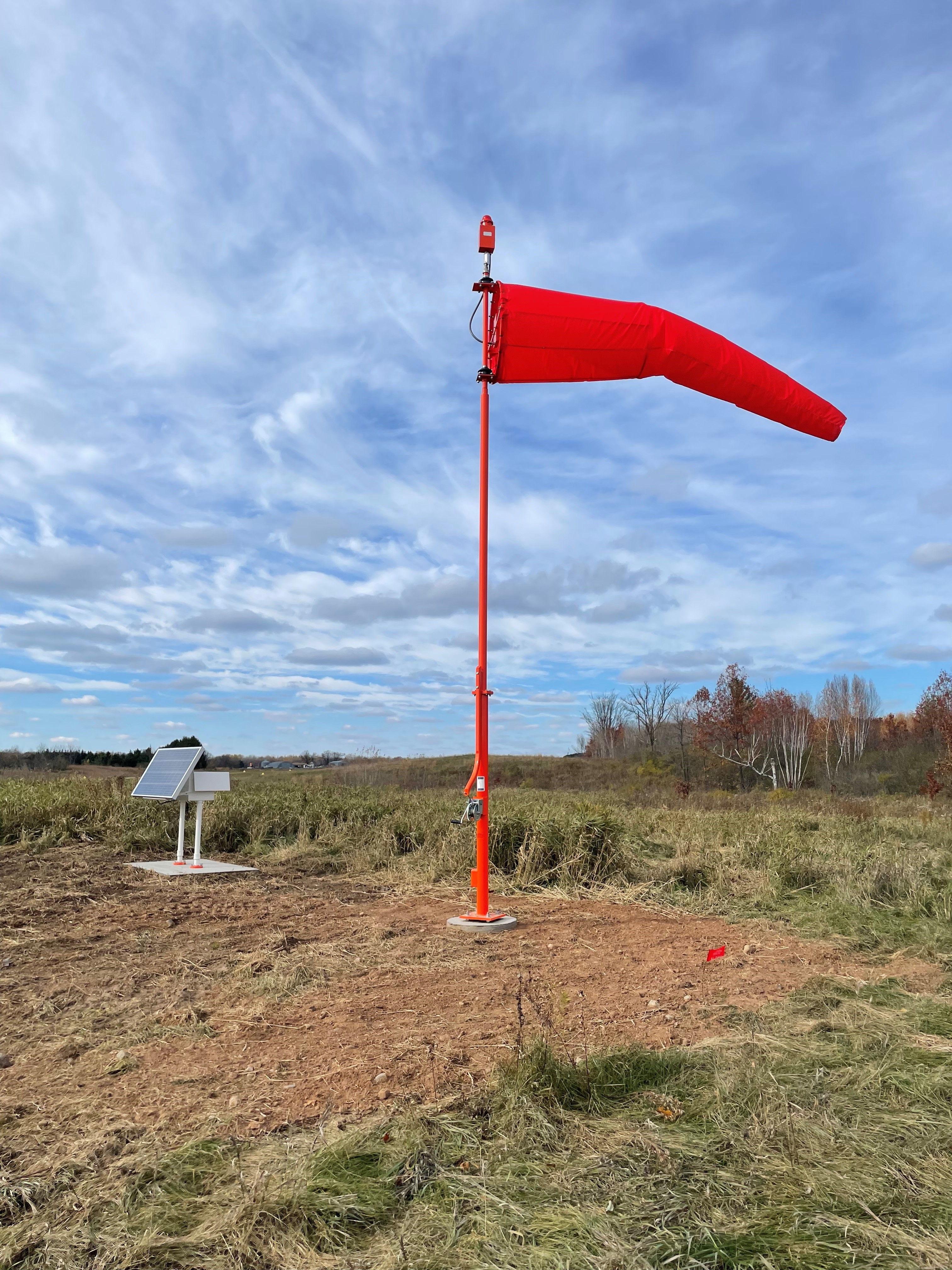

ADB SAFEGATE offers an LED Solar Wind Cone System (SWCS) that’s an ideal choice for airfields that require improved safety measures, but experience difficulties with grid access. The SWCS uses a Solar Power Supply (SPS) that is a self-contained photovoltaic power source for the WCS806 and WCS807 Solar Wind Cones.

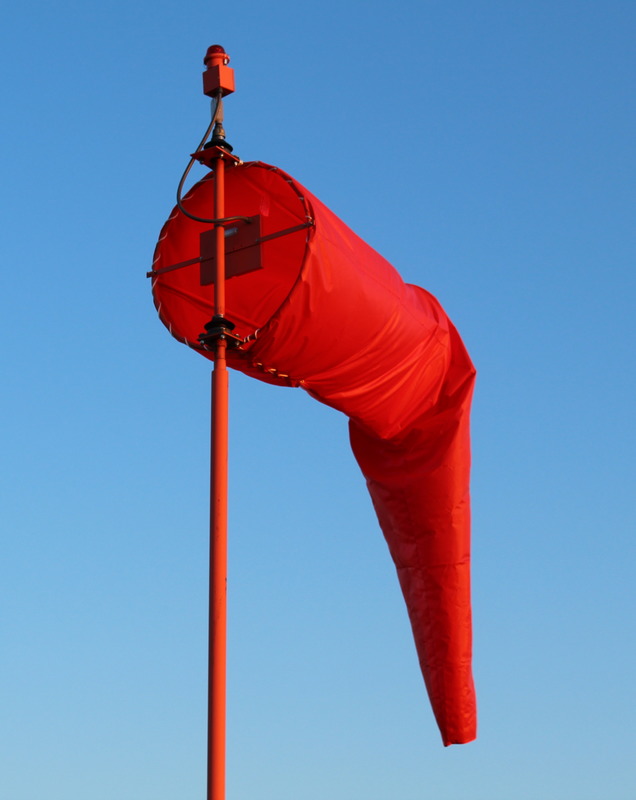

The SPS provides power to Hali-Brite® ETL-certified wind cones with L-810 obstruction lights (12 VDC LED models) The system operates the wind cone lamp dusk-dawn and is controlled by an ETL-certified photocell, to FAA illumination requirements.

Additional Features

  • 50- or 135-watt solar panel, with 12-year/90% and 25- year/80% power warranty
  • MPPT charge controller, with custom-programmed temperature compensation
  • On-board indicators for battery, charging and system status
  • 100 to 300 A-H AGM battery, designed for 4000 charge/discharge cycles
  • 10-day nominal battery autonomy
  • Solar panel tilts 25-65 degrees in 10 degree steps, factory preset for the installation location
